Τροφοδοτικό Ράγας 5V 12W - 5 Χρόνια Εγγύηση
Features:
- Universal AC input / Full range: 85 – 264VAC and 120 – 370VDC
- High Dielectric Strength: IN/OUT up to 4000VAC
- Protections: Over current / Short circuit / Over Voltage
- Wide operating ambient temperature range: -40°C ÷ +70°C
- Over-voltage category OVC III (designed to meet EN61558-1)
- Low no load power consumption
- Isolation class II design
- Designed to install on TS35x7.5/TS35x15 Din Rail

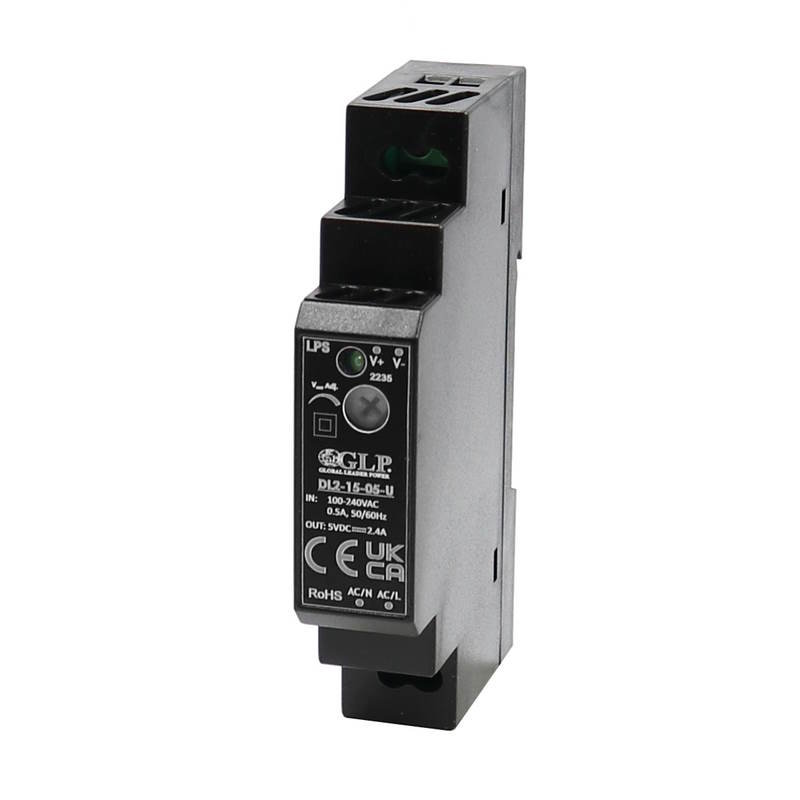

MODEL: DL2-15-05-U
POWER: 12W
VOLTAGE: 5V
CURRENT: 2.4A
WORKING TEMPERATURE: -40°C ~ +70 °C (Refer to Derating Curve)
DIMENSIONS: 90 x 17.5 x 58mm
Input:
85 – 264VAC and 120 – 370VDC
Output:
5V
Αριθμός Μοντέλου:
DL2-15-05-U
Διάσταση:
90 x 17.5 x 58mm
Μέγιστη Τάση:
5V
Περιβάλλον λειτουργίας:
-40°C ~ +70 °C (Refer to Derating Curve)
Συνολικό ονομαστικό φορτίο:
12W
Μέγιστο Ρεύμα:
2.4A
Κατασκευαστής:
GLP
